Files and File Groups in SQL Server

In today’s blog post I want to talk about a very important topic in SQL Server: how SQL Server handles Files and File Groups. When you create a simple database with a CREATE DATABASE command, SQL Server only creates 2 files for you:

A Data File (.mdf)
A Transaction Log File (.ldf)

The data file itself is created within the one and only PRIMARY file group. Within the PRIMARY file group by default SQL Server stores all the data (user tables, system tables, etc.). So what is the purpose of having additional files and File Groups? Let’s have a look at it.

Multiple File Groups

When you create additional File Groups for your database, you are able to store your user defined tables and indexes in them. This helps you in multiple ways:

You keep the PRIMARY file group small.
You can split your data across multiple File Groups (e.g. when you use Table Partitioning in the Enterprise Edition).
You can perform Backup and Restore operations at the File Group level. This gives you a more granular control over your Backup and Restore strategy.
You can run DBCC CHECKDB commands at the File Group level instead of at the database level.

In general, you should always have at least one secondary File Group where you store your own database objects. You should never store anything in the PRIMARY file group besides the system objects that SQL Server creates for you.

Multiple Files

When you have created your own File Group you also have to place at least one file into it. In addition, you can add additional files into the File Group. This can also improve the performance of your workload, because SQL Server evenly spreads the data between all files through a so-called Round Robin Allocation Algorithm. The first extent of 64K is stored in the first file, the second extent of 64K is stored in the second file, the third extent of 64K is again stored in the first file (when you have 2 files in your File Group).

With that approach SQL Server can latch multiple copies of the allocation bitmap pages (PFS, GAM, SGAM) in the Buffer Pool and increase the throughput of your workload. You solve the same problem that can occur in a default configuration of TempDb. In addition, SQL Server also makes sure that all the files within the File Group are full at the same point in time – through a so-called Proportional Fill Algorithm. Therefore, it is also very important that all your files within the File Group have the same initial size and the same Auto Growth factors. Otherwise the Round Robin Allocation can’t work very well.

A concrete example

Now let’s have a look at a concrete example of how you can create a database with an additional File Group with multiple files within it. The following code shows you the CREATE DATABASE command that is necessary to accomplish this task.

-- Create a new database
CREATE DATABASE MultipleFileGroups ON PRIMARY
(
	-- Primary File Group
	NAME = 'MultipleFileGroups',
	FILENAME = 'C:\Program Files\Microsoft SQL Server\MSSQL13.MSSQLSERVER\MSSQL\DATA\MultipleFileGroups.mdf',
	SIZE = 5MB,
	MAXSIZE = UNLIMITED,
	FILEGROWTH = 1024KB
),
-- Secondary File Group
FILEGROUP FileGroup1
(
	-- 1st file in the first secondary File Group
	NAME = 'MultipleFileGroups1',
	FILENAME = 'C:\Program Files\Microsoft SQL Server\MSSQL13.MSSQLSERVER\MSSQL\DATA\MultipleFileGroups1.ndf',
	SIZE = 1MB,
	MAXSIZE = UNLIMITED,
	FILEGROWTH = 1024KB
),
(
	-- 2nd file in the first secondary File Group
	NAME = 'MultipleFileGroups2',
	FILENAME = 'C:\Program Files\Microsoft SQL Server\MSSQL13.MSSQLSERVER\MSSQL\DATA\MultipleFileGroups2.ndf',
	SIZE = 1MB,
	MAXSIZE = UNLIMITED,
	FILEGROWTH = 1024KB
)
LOG ON
(
	-- Log File
	NAME = 'MultipleFileGroups_Log',
	FILENAME = 'C:\Program Files\Microsoft SQL Server\MSSQL13.MSSQLSERVER\MSSQL\DATA\MultipleFileGroups.ldf',
	SIZE = 5MB,
	MAXSIZE = UNLIMITED,
	FILEGROWTH = 1024KB
)
GO

After the creation of the database, the question is then how to put a table or index into a specific file group? You can specify the File Group manually with the ON keyword as the following code shows.

CREATE TABLE Customers
(
   FirstName CHAR(50) NOT NULL,
   LastName CHAR(50) NOT NULL,
   Address CHAR(100) NOT NULL,
   ZipCode CHAR(5) NOT NULL,
   Rating INT NOT NULL,
   ModifiedDate DATETIME NOT NULL,
)
ON [FileGroup1]
GO

The other option is that you mark a specific File Group as the Default File Group. Then SQL Server automatically creates every new database object within that File Group without specifying the ON keyword.

-- FileGroup1 gets the default filegroup, where new database objects
-- will be created
ALTER DATABASE MultipleFileGroups MODIFY FILEGROUP FileGroup1 DEFAULT
GO

This is the approach that I normally recommend, because then you don’t have to think anymore, when you afterwards create your database objects 😉 So now let’s create a new table that is automatically stored in the FileGroup1 File Group.

-- The table will be created in the file group "FileGroup1"
CREATE TABLE Test
(
	Filler CHAR(8000)
)
GO

And now we perform a simple experiment: we insert 40 000 records into the table. Every record is about 8K in size. Therefore we insert about 320 MB of data into the table. And this is where the Round Robin Allocation that I have mentioned previously kicks in: SQL Server spreads the data evenly between both files: the first file gets 160 MB of data, and the second file gets also 160 MB of data.

-- Insert 40.000 records, results in about 312MB data (40.000 x 8KB / 1024 = 312,5MB)
-- They are distributed in a round-robin fashion between the files in the file group "FileGroup1"
-- Each file will get about 160MB
DECLARE @i INT = 1
WHILE (@i <= 40000)
BEGIN
	INSERT INTO Test VALUES
	(
		REPLICATE('x', 8000)
	)

	SET @i += 1
END
GO

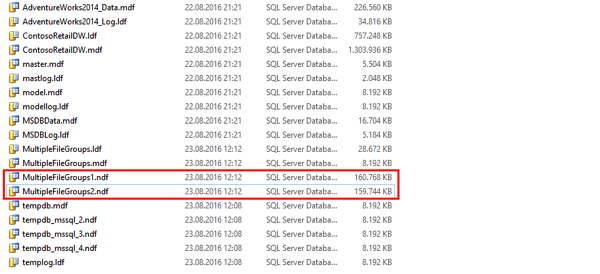

Then when you look into Windows Explorer you can see that both files have the same size:

When you put those file onto different physical drives, you can even access them simultaneously. That’s the power of having multiple files within a File Group.

Summary

In today’s blog post I have shown you how multiple File Groups and multiple Files within a File Group can help you to make your database more manageable and how multiple files within a File Group are used through the Proportional Fill Algorithm.

Please feel free to leave a comment if you are already using a customized physical database design as described here.

Like or share to get the source code.

Thanks for your time,

-Klaus
